4. 実装・構築手順

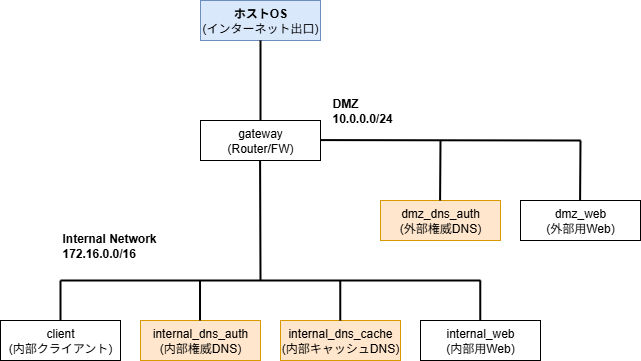

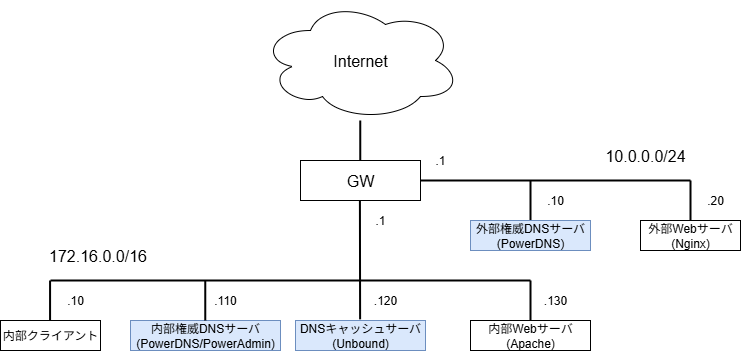

vagrant init

Vagrant.configure("2") do |config|

  # 共通設定
  ALMA_BOX = "almalinux/9"
  VM_MEMORY = 2048

  # --------------------------------------------------------------------------
  # 1. Gateway-VM (VyOS) - ルーター、DMZ/内部NWのゲートウェイ
  # --------------------------------------------------------------------------
  # FW/ルータ用VMの設定
  config.vm.define "gateway" do |gw|
    gw.vm.box = "higebu/vyos"
    gw.vm.hostname = "gateway"

    # インターネット出口
    # デフォルトでNAT割り当て

    # DMZ
    gw.vm.network "private_network", type: "manual",
                      virtualbox__intnet: "DMZ_NETWORK",
                      ip: "10.0.0.1",
                      auto_config: false
    # 内部NW
    gw.vm.network "private_network", type: "manual",
                      virtualbox__intnet: "INTERNAL_NETWORK",
                      ip: "172.16.0.1",
                      auto_config: false

    # ホストOSからDMZへのアクセスを許可するポートフォワーディング
    # 外部Web (10.0.0.20:80) へのアクセスをホストOSの8080ポートに転送
    gw.vm.network "forwarded_port",
                      guest: 80,
                      host: 8080,
                      protocol: "tcp",
                      # NATを経由してDMZ内のWebサーバーへパケットをルーティング
                      forward_ip: "10.0.0.20"
    gw.vm.network "forwarded_port",
                      guest: 53,
                      host: 5353,
                      protocol: "udp",
                      forward_ip: "10.0.0.10"

    gw.vm.provider "virtualbox" do |vb|
      vb.name = "Gateway"
      vb.memory = "512"
    end
  end

  # --------------------------------------------------------------------------
  # 2. DMZ (10.0.0.0/24) に配置するサーバ
  # --------------------------------------------------------------------------
  # 外部権威DNSサーバ (PowerDNS)
  config.vm.define "dmz-dns-auth" do |dmz_dns|
    dmz_dns.vm.box = ALMA_BOX
    dmz_dns.vm.hostname = "dmz-dnsauth"

    # DMZに接続 (10.0.0.0/24 セグメント)
    dmz_dns.vm.network "private_network",
                        virtualbox__intnet: "DMZ_NETWORK",
                        ip: "10.0.0.10"

    dmz_dns.vm.provider "virtualbox" do |vb|
      vb.name = "DMZ-dnsauth"
      vb.memory = VM_MEMORY
    end
  end

  # 外部向けWebサーバ (Nginx)
  config.vm.define "dmz-web" do |dmz_web|
    dmz_web.vm.box = ALMA_BOX
    dmz_web.vm.hostname = "dmz-web"

    # DMZに接続 (10.0.0.0/24 セグメント)
    dmz_web.vm.network "private_network",
                        virtualbox__intnet: "DMZ_NETWORK",
                        ip: "10.0.0.20"

    dmz_web.vm.provider "virtualbox" do |vb|
      vb.name = "DMZ-web"
      vb.memory = VM_MEMORY
    end
  end

  # --------------------------------------------------------------------------
  # 3. 内部NW (172.16.0.0/16) に配置するサーバ
  # --------------------------------------------------------------------------
  # 内部権威DNSサーバ & PowerAdmin
  config.vm.define "intra-dnsauth" do |intra_dnsauth|
    intra_dnsauth.vm.box = ALMA_BOX
    intra_dnsauth.vm.hostname = "intra-dnsauth"

    # 内部NWに接続 (172.16.0.0/16 セグメント)
    intra_dnsauth.vm.network "private_network",
                        virtualbox__intnet: "INTERNAL_NETWORK",
                        ip: "172.16.0.110"

    intra_dnsauth.vm.provider "virtualbox" do |vb|
      vb.name = "Intra-dnsauth"
      vb.memory = VM_MEMORY
    end
  end

  # DNSキャッシュサーバ (intra_dnscacheDNS)
  config.vm.define "intra-dnscache" do |intra_dnscache|
    intra_dnscache.vm.box = ALMA_BOX
    intra_dnscache.vm.hostname = "intra-dnscache"

    # 内部NWに接続 (172.16.0.0/16 セグメント)
    intra_dnscache.vm.network "private_network",
                        virtualbox__intnet: "INTERNAL_NETWORK",
                        ip: "172.16.0.120"

    intra_dnscache.vm.provider "virtualbox" do |vb|
      vb.name = "Intra-dnscache"
      vb.memory = VM_MEMORY
    end
  end

  # 内部向けWebサーバ (Apache)
  config.vm.define "intra-web" do |intra_web|
    intra_web.vm.box = ALMA_BOX
    intra_web.vm.hostname = "intra-web"

    # 内部NWに接続 (172.16.0.0/16 セグメント)
    intra_web.vm.network "private_network",
                        virtualbox__intnet: "INTERNAL_NETWORK",
                        ip: "172.16.0.130"

    intra_web.vm.provider "virtualbox" do |vb|
      vb.name = "Intra-web"
      vb.memory = VM_MEMORY
    end
  end

  # クライアントVM (Linux-mint)
  config.vm.define "client" do |client|
    client.vm.box = "adabits/linuxmint17-64"
    client.vm.hostname = "client"

    # 内部NWに接続 (172.16.0.0/16 セグメント)
    client.vm.network "private_network",
                        virtualbox__intnet: "INTERNAL_NETWORK",
                        ip: "172.16.0.10"

    client.vm.provider "virtualbox" do |vb|
      vb.name = "Intra-Client"
      vb.memory = "2048"
      vb.cpus = 2
    end # GUIのためメモリを多めに
  end
end

vagrant plugin install vagrant-vyos

vagrant up
